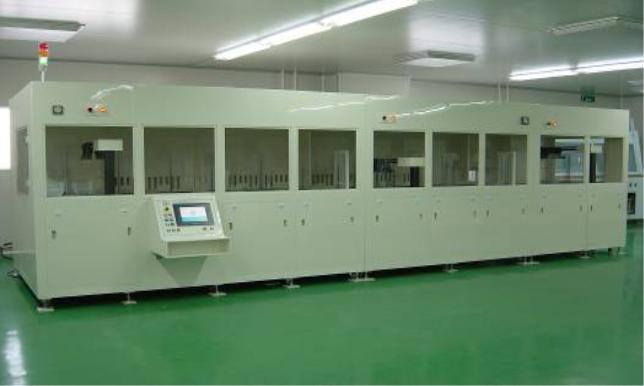

Our company introduces the numerical control full-automatic qys-6000-28j ultrasonic cleaning equipment

Equipment purpose:

The equipment is mainly used for the cleaning of copper alloy castings. The equipment adopts the combination of ultrasonic cleaning, air drum rinsing, ultrasonic pickling, passivation, kerosene soaking and hot air drying to remove the oil stains, impurities, welding spots and oxide scales on the surface of the workpiece and dry them. After cleaning, the surface of copper parts is bright and free of oil stains, and can remove oxidation traces, and also can prevent the surface of copper parts from oxidation.

Equipment structure:

The numerical control fully automatic manipulator qys-6000-28j ultrasonic cleaning equipment customized by our company has 11 process positions, which are: loading station, ultrasonic oil removal and cleaning station, air drum rinsing station, ultrasonic pickling station, air drum rinsing station, passivation tank station, air drum rinsing station, hot air circulation drying station, ultrasonic kerosene soaking station, blow drying tank station and blanking worker Position. The equipment is mainly composed of loading platform, unloading platform, ultrasonic generator, ultrasonic vibration plate, ultrasonic oil removal and cleaning tank, ultrasonic pickling tank, air drum rinsing tank, passivation tank, ultrasonic kerosene soaking tank, blow drying chamber, hot air circulation and drying tank, storage tank, circulation and filtering system, heating system, and also includes tooling basket, 1 set of single arm manipulator transmission, fully enclosed cover, exhaust system , PLC touch screen control system, etc.
